Processing the Data
On a clear, dark night, light that has traveled through space for a
billion years touches a mountaintop in southern New Mexico and enters the
sophisticated instrumentation of the SDSS's 2.5-meter telescope. The light
ceases to exist as photons, but the data within it lives on as digital
images recorded on magnetic tape. Each image is composed of myriad pixels
(picture elements); each pixel captures the brightness from each tiny point
in the sky.
But the sky is not made of pixels. The task of data managers for the
Sloan Digital Sky Survey is to take digitized data - the pixels
electronically encoded on the mountaintop in New Mexico - and turn
them into real information about real things. Astronomers process
the data to produce information they can use to identify and measure
properties of stars and galaxies. Astronomers must be able to find,
distinguish, and measure the brightness of celestial objects, and
then collect the stars, galaxies, and quasars into a catalog.
Computing experts describe the project as something like creating the
Manhattan phone book for the heavens. Each star is like a person in
the phone book, with a name and an address. There is even a Yellow Pages
in the celestial directory: the spectral survey, a section containing a
smaller number of entries with more detailed information. The spectral
digitized data yield information
about galaxies' velocities as they move away from the Earth, from which we can
calculate how far away they are.
Scientists must initially process the data quickly (within about
a week) because SDSS astronomers need the information to configure
their telescope to work most efficiently during the next dark phase
of the moon. If too much time goes by, the target objects will set as the
season passes.
Scientists at Fermilab have
led the effort to develop what the SDSS calls data-processing
pipelines. A pipeline is a computer program that processes
digitized data automatically to extract certain types of information.
The term "pipeline" connotes the automated nature of the data processing;
the data "flow" through the pipelines with little human intervention.
For example, the astrometric pipeline, built by computer scientists at the U.S. Naval Observatory,
determines the precise absolute two-dimensional position of stars and
galaxies in the sky. In this case, digitized data from photons reaching
the 2.5-meter telescope go in one end of the astrometric pipeline, and
object positions come out the other. In between, along the length of the
pipeline, software changes pixels into real information.
The data pipelines are a collaborative effort. Princeton University scientists
built the photometric pipeline, and
University of Chicago scientists created the spectroscopic pipeline.
Fermilab's contributions include the monitor-telescope pipeline and the
pipeline that selects candidates for the spectroscopic survey. Fermilab
also coordinates the smooth operation of all the pipelines.

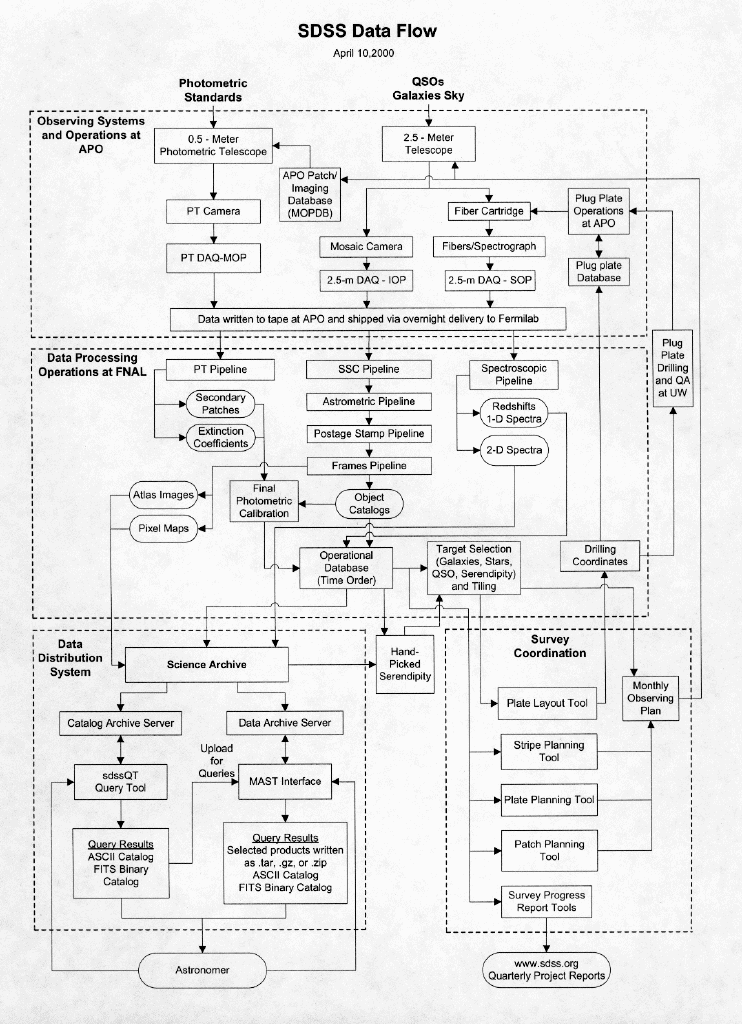

Information processing for the SDSS begins when the CCDs collect light. Charge
"buckets" are converted to digitized signals and written to tape at the
observatory. The tapes travel from
Apache Point to Fermilab by express courier. The tapes go to Fermilab's
Feynman Computing Center, where their data are read and sent into various pipelines: spectrographic data into the spectrographic
pipeline, monitor telescope data into the monitor pipeline, and imaging data into
the astrometric, photometric, target selection, and two other pipelines.
Information about stars, galaxies and quasars comes out of the pipeline.
This information is included in the Operations Database, written at Fermilab
and at the Naval Observatory, which collects information needed to keep the
Sky Survey running.
Eventually, experimenters will pass the information in the Operations
Database to the science database developed by scientists at
Johns Hopkins
University. The science database will make the data
readily available to scientists on the project.
SDSS Terminology
To understand how data are processed, it helps to understand the terms SDSS scientists use
to describe the data:
A scanline is data from a single set of CCDs that sweep the same
area of sky. Each set of 5 CCDs is housed in a single dewar: each dewar has 6 sets of
CCDs separated by about 80% of the CCD width. The area of sky swept by the 6
CCD columns, or "camcols," is called a strip. A given area of sky is
imaged by performing two successive scans, offset by almost a CCD width, to
fill in a stripe.
The data stream from a single CCD in a scanline is cut into a series of
frames that measure 2048 x 1489 pixels and overlap 10% with the adjacent
frames. The frames in the 5 filters for the same part of the sky are called a field.
A run is the set of data collected from one continuous pass of the
2.5 m telescope across the sky, covering one strip. Typically, a run lasts for a few hours.
The Images
The goal of the SDSS is to image all objects brighter than 23rd magnitude in 1/4
of the sky, roughly the area of the North Galactic Cap, in five different
wavelengths of light. Because of the way the
telescope operates, data are collected
as a continuous tapestry. The data are passed into a
set of interoperating pipelines, which correct the data for defects, calculate
and apply astrometric and photometric calibrations, measure the sky background,
and find, measure and catalog objects. Since the last step is by far the most
time consuming, the data stream is cut into a series of fields,
each of which is processed independently.
Astrometric calibrations (assigning precise coordinates to each object)
are performed by the astrometric pipeline (Astrom). The photometric calibrations
(measuring the conditions of the atmosphere during each run) are produced by the
monitor telescope pipeline (MT). Because the stars used in this
calibration are too bright to be observed by the main 2.5 m telescope,
sky patches that overlap the 2.5 m scans are observed with the Monitor
Telescope. These secondary patches are used to tie the MT photometric system to the
main 2.5 m observations.
The photometric pipeline (Photo) turns the imaging data into information about
the celestial objects. Photo consists of three successive pipelines.
The last of these, the Frames pipeline, operates on an individual set of five
frames that cover a field. Photo corrects each frame for artifacts
(bad columns, cosmic rays, etc.), corrects for detector background and sensitivity
variations, finds objects in two stages (bright and faint), searches for
lower surface brightness objects in a binned image, and combines the objects in the
five filters. Photo then measures the objects (position, size, shape, counts),
classifies them, resolves compound objects to get information about individual members,
and cuts atlas images. Then, Photo writes a series of outputs: tables of
measured parameters, corrected frames, sky frames four pixels square with
objects subtracted, atlas images, mask frames (to cover mistakes such as
saturated or interpolated pixels), and summary statistics for each frame.
To perform these calculations, the Frames pipeline needs to know the properties of the
detectors and the sky background. These properties are calculated by
the Postage Stamp Pipeline (PSP), which calculates these quantities for
the whole run and interpolates them to the center of each frame. The
PSP uses cutout images of bright (but unsaturated) stars, rejects bad
stars (double stars, etc.) and calculates the parameters of a simple point spread
function (PSF) - the shape of a stellar image. The cutouts are made
by the Serial Stamp Collecting Pipeline (SSC), which also aligns the frames
in a field. Below, we show examples of some processing steps carried out
on part of a single frame. Click on each picture for a larger image.
Once the imaging data have been run through these pipelines, the images from the
five filters can be combined to make the beautiful color images
accessible on this site.
Additionally, the measured parameters of all the objects are stored in a
database that astronomers can search to find objects they
are interested in studying.
Spectra
The purpose of the spectroscopic observations is threefold:
Redshifts: To go from the two-dimensional images to a
three-dimensional map of the universe, we need to measure redshifts, or how far
the object's spectra has been shifted compared to when the object in not moving
relative to Earth. Redshifts
allow us to estimate the distances to galaxies and quasars.
Classification: We want to know which objects are stars, which are galaxies,
which are quasars, and which are new objects yet to be discovered.
Flux/Wavelength: Spectra can tell us detailed properties of objects, such
chemical composition.
The spectroscopic data pipeline is designed to output these important quantities.
Like the imaging data, the spectroscopic data are processed by a large pipeline,
which takes the input CCD data and outputs completely processed spectra. The
first part of the pipeline applies corrections for detector problems and
characteristics. These corrections require a number of other pieces of data:
Flat field images: images that help determine how the telescope optics
and spectrograph respond to uniform light.
Arc lamps: emission line spectra of a well-understood excited gas
(like the neon in neon signs), which allows us to relate the position on
the image to wavelength.
Sky spectra: several fibers on each plate are devoted to blank sky;
these allow us to subtract off the background spectrum from the sky.
Standard stars: stars that have known properties, used to
relate the intensity we measure to proper flux units.
 |
 |
 |
flat field
|
arc lamp
|
science observation
|
Furthermore, a correction is made to account for the absorption of the
Earth's atmosphere (telluric correction) and the Doppler shift due to
the Earth's motion around the sun (heliocentric correction).
Once all these corrections are applied, the pipeline extracts
individual object spectra, and then produces a one-dimensional
spectrum (flux as a function of wavelength) for each object. These
one-dimensional spectra must be wavelength calibrated, their red and blue
halves must be joined, and then the spectra be identified.
The last task, spectral identification, is important but challenging.
The spectra of galaxies can vary greatly, and spectra for stars, quasars,
and other types of objects look different. Not only do the intrinsic
properties of these objects vary, but they can be at different redshifts,
meaning we see a different portion of their spectrum. To make sense of all these
spectra, the software first tries to find all the emission lines (spectral features
due to the emission of specific wavelengths of light from atoms or
molecules) and identify them. Then, the entire spectrum is matched against
a set of templates - standard spectra of different kinds of objects - that test
how well the spectrum matches each template at different redshifts.
The best match tells us what type of object we are looking at, and
simultaneously, the object's redshift.
|

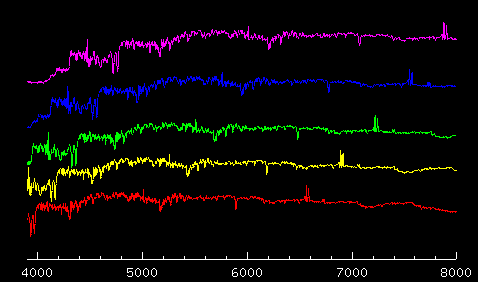

A galaxy spectrum at four different redshifts
(0.0, 0.05, 0.10, 0.15, 0.20)
|
The Databases
Database Logical Design
The processed data are stored in databases. The logical database
design consists of photographic and spectrographic objects.
They are organized into a pair of snowflake schemas. Subsetting
views and many indices give convenient access to the conventional
subsets (such as stars and galaxies). Procedures and indices are
defined to make spatial lookups convenient and fast.
 |
The database diagram for the
SDSS DR1 databases |
Since the data processing software underwent substantial changes
since the survey started, we are storing two different versions
of our processed images. First, we store the version of the processed
data frozen at the moment when the targets for spectroscopic observations
were selected. This database is called TARGDR1, where DR1 designates
the version number: Data Release 1.
When the data have been processed with the best available version of
the software, these objects are stored in the database BESTDR1.
The schema of the two databases is identical, and many of the objects
appear in both, but due to the better handling of the noise, the number
of objects in BESTDR1 is somewhat higher.
Database Physical Design
SkyServer initially took a simple approach to database
design – and since that worked, we stopped there. The
design counts on the SQL storage engine and query optimizer
to make all the intelligent decisions about data layout
and data access.
The total amount of data in the two databases is 818 GB, and the total
number of rows exceeds 3.4 billion.
Filegroups | BESTDR1 | TARGDR1 |
data | 1 | 200 |
PhotoOther | 18.1 | |
PhotoObjAll | 165.4 | |
PhotoTag | 78.1 | 73.7 |
PhotoTagIndex | 53.6 | |
PhotoObjIndex | 66.3 | |
PhotoObjProfile | 80 | |
PhotoObjMask | 22 | 17.2 |
SpecObj | 6 | |
Neighbors | 24.2 | |
Frame | 30 | 30 |
Log | 4.2 | 2 |
Total | 495.3 | 322.9 |
|
Count of records and bytes in major tables.
Indices approximately double the space. |
The data tables are all created in several filegroups. The database
files are spread across a single RAID0 volume. Each filegroup
contains several database files that are limited to about 50Gb each.
The log files and temporary database are also spread across these disks.
SQL Server stripes the tables across all these files and hence
across all these disks. It detects the sequential access,
creates the parallel prefetch threads, and uses multiple
processors to analyze the data as quickly as the disks can
produce it. When reading or writing, this automatically
gives the sum of the disk bandwidths (over 400 MBps peak, 180MBps typical)
without any special user programming.
Beyond this file group striping, SkyServer uses all the
SQL Server default values. There is no special tuning.
This is the hallmark of SQL Server – the system aims to
have "no knobs" so that the out-of-the box performance is
quite good. The SkyServer is a testimonial to that goal.
Personal SkyServer
A 1% subset of the SkyServer database (about 1.3 GB SQL
Server database) can fit (compressed) on a CD or be
downloaded
over the web. This includes the website and all the photo and
spectrographic objects in a 6º square of the sky. This
personal SkyServer fits on laptops and desktops. It is
useful for experimenting with queries, for developing the
web site, and for giving demos. Essentially, any
classroom can have a mini-SkyServer per student. With
disk technology improvements, a large slice of the public
data will fit on a single disk by 2005.
|
